IEC60529 Standard Sand And Dust Test Chamber Meet IP5X IP6X Testing Requirements
Application:
This IP5X/IP6X sand and dust test chamber is used to simulate the natural environment or human factors designed IP5X and IP6X two shell protection grade of sand dust environment test. It is suitable for testing the sealing performance of product shell and reliability test, testing the sealing performance of electronic, electrical and electronic products, vehicle parts and other mechanical and electrical equipment in the use, storage and transportation of sand and dust environment. IP5X/IP6X dustproof test chamber in line with
IEC60529,GB4208 and other related standards of the shell protection grade test method.
Products Features:
- Accept customized design requirements.
- Properties and applications meet the military and industry standards.
- 7'' touch screen display and intelligent software for easy and comfortable operation.
- Advanced rotary blowing design to prevent dust from backflflow.
- Automatic control the amount of dust/sand and wind to meet the standards of tests.
- Dynamic adjustment temperature control system: rapid and stable control of test chambers' temperature.
- Intelligent function: automatically add and recycle sand/dust.
- Independent control of temperature and humidity ensures a stable testing.
- Fashionable design of modular construction.
- Observation window in testing space with a dust wiper for real-time monitoring.
- Optional APP mobility management.
- Intelligent and independent protection design for overload, overheat, power supply abnormity, overvoltage,component malfunction monitoring.
- Optional remote assist service function and teaching CDs.
Standard:
- IEC 60529 "Enclosure Class protection Class (IP code)" dust test method IP5X, IP6X
- GB 4208-93 "Housing class protection Class (IP code)" dust test method IP5X, IP6X
- GB 2423.37-89 Test method for dust resistance as specified in test methods for sand and dust
- GJB 150.12 Test method for sand dust (Dust proof test)
- GB/T 10485 "Road vehicle external lighting and light signal equipment environmental durability" dust test method
- DIN40050.9 "road vehicles IP (international protection) protection types - electrical equipment for protection against foreign objects, water and contact" dust test requirements
- ISO 20653 Road vehicles - Protection class (IP code) Protection of electronic equipment against foreign objects, water and acces
- And other equivalent JIS, MIL, DIN, GB and other standards
Structure:

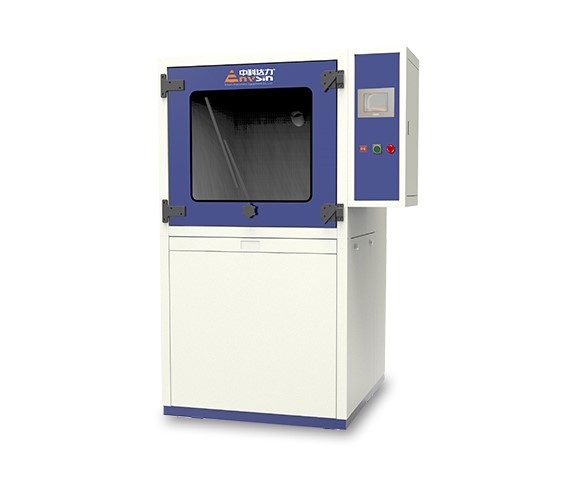

The sand and dust test chamber adopts integral structure with the sand and dust test chamber as the main body. Electric control cabinet is
set up on the right side of the sand and dust test chamber , with built-in electric control device and operation panel device. There is an electromechanical cabin at the back and bottom of the sand and dust test chamber , with built-in vacuumizing unit, dust pump, sand and
dust vibrator and other devices. Try to set up vacuumizing interface device, dust heater, sample shelf, dust circulating air duct, studio door and other devices in the inner sand and dust test chamber.
Specifications:
| Model:sand and dust test chamber | ESC500 | ESC800 | ESC1000 | ESC1500 |
| Sample holder Dimension (mm) | 785*785 | 790*990 | 980*980 | 980*1480 |
| Test Space Dimension (mm) | 800*800*800 | 800*1000*1000 | 1000*1000*1000 | 1000*1500*1000 |
| Temp. Range (C°) | RT +20~+80 adjustable |
| Selective Dustproof | IP5X (Dustproof Test, increase or no negative pressure) IP6X (Seal Test, increase negative pressure) |
| Standards | GB4208-2008 / IEC60529:2001 |
| Power | AC230V ±10%, 50HZ, 3/N/PE |
| Options Accessories: Independent sensors for protection (NE60519-2.1993) Entry ports for testing space Power outlets for specimens Spare parts package E-management and cyber-software APP for mobility management Sand testing medium Dust testing medium | Standard Version: 1 Stainless steel shelve 1 Screen sieve |
